Description
Product Highlights
Features
12" Loaded Vented Subwoofer Enclosure Box
-
Deep & Powerful Bass: This 700W RMS/1200W Max Single 12" Subwoofer Enclosure features CFL³ Technology Voice Coils, MLB Collar Technology, Fiber Matrix Paper Cones, and Durable Sound Material which ensures exceptional longevity and crystal clear sound even at high volumes.
-
Flexibility in Placement: This subwoofer enclosure is the perfect size for most vehicles; it can be placed in various locations, such as the trunk or back of an SUV without taking up too much space.
- Customizability: The Stinger Audio subwoofers allow you to adjust the bass level to your personal taste, giving you more control over the overall sound of your vehicle's audio system.
700W (RMS) Class D Monoblock Subwoofer Amplifier
- Digital Class-D Mono Block Amplifier: Delivers powerful performance in a compact size, ensuring efficient and high-quality power for your car audio subwoofer system!
-
Small Footprint and Sturdy Design: Precise sound control with our durable metal potentiometer, designed for long-lasting reliability and exceptional tonal adjustments.
-
Robust Unregulated Power Supplies: Advanced pulse width modulator integrated circuits in the power supply circuitry offer superior performance and efficiency.
- Designed with Advanced HEXFET® Power MOSFET: Featuring reduced on-resistance, faster switching speeds, and unmatched reliability.
- Remote Bass Controller: Enjoy convenient audio control from your driver's seat, allowing you to effortlessly adjust bass levels.
OFC Amplifier Wiring Kit
-
Full Copper Construction: This copper wire is able to efficiently transmit electricity, ensuring high performance and reliability.
-
Quality Twisted Pair Interconnects: Designed to provide reliable overcurrent protection, ensuring your devices and equipment remain safe from damage caused by power surges or short circuits.
- Professional-Grade Components: Carefully designed interconnects to provide exceptional signal transfer, eliminating any unwanted noise or interference.
Description

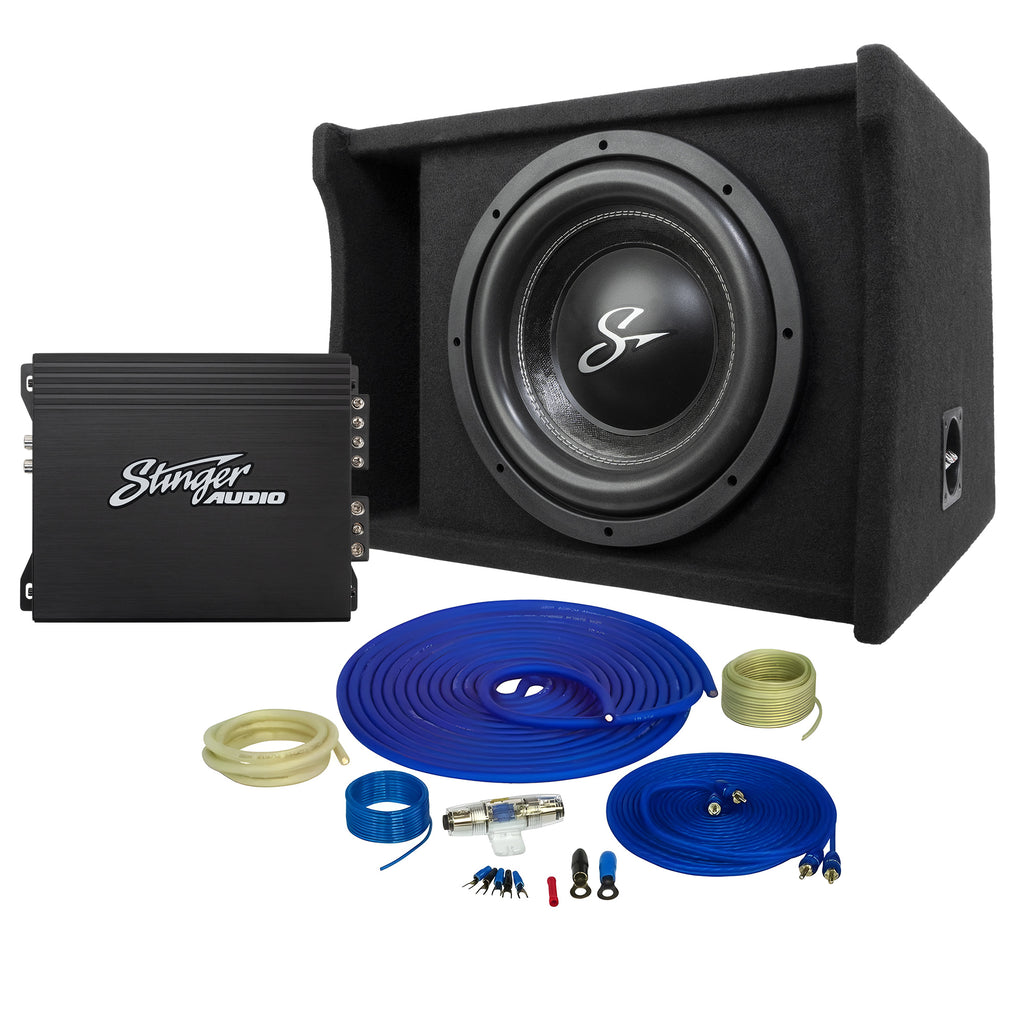

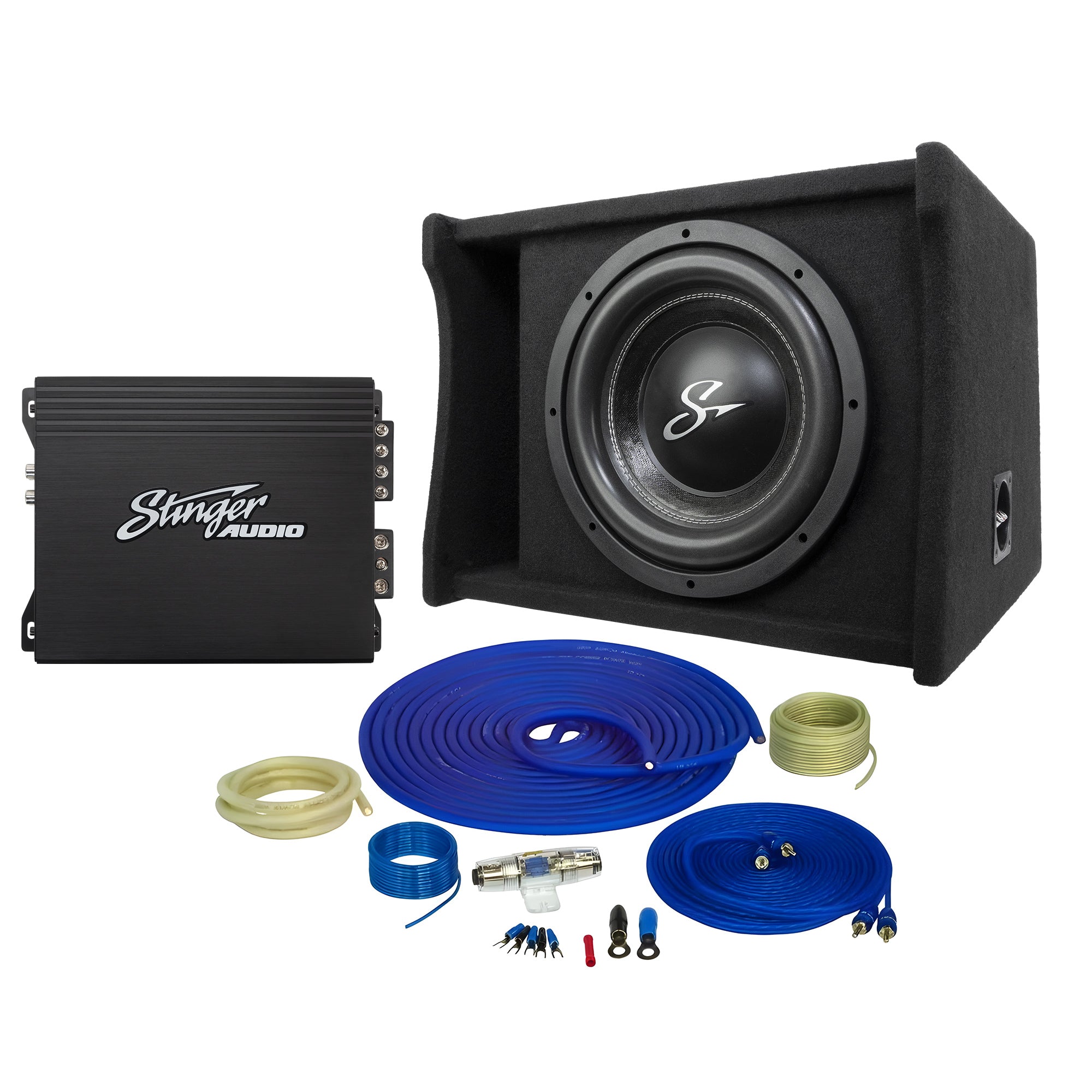

Upgrade your vehicle's sound system with the Stinger Audio Party Pack - a complete subwoofer bass package. Experience deep and powerful bass with a 12-inch loaded ported subwoofer box. This package includes a 700W RMS amplifier for increased volume capabilities and distortion-free sound. Easy installation with included amp wiring kit ensures a hassle-free setup for your new subwoofer box. Elevate every trip in your SUV, car, and more with an immersive and dynamic listening experience!
What's in the Box
- Single 12" 700 Watt RMS Loaded Vented Subwoofer Enclosure
- Loaded Subwoofer Enclosure User Guide
- 700 Watt RMS Class D Car Monoblock Amplifier
- Amplifier User Guide
- Complete Amp Wiring Kit
Specifications

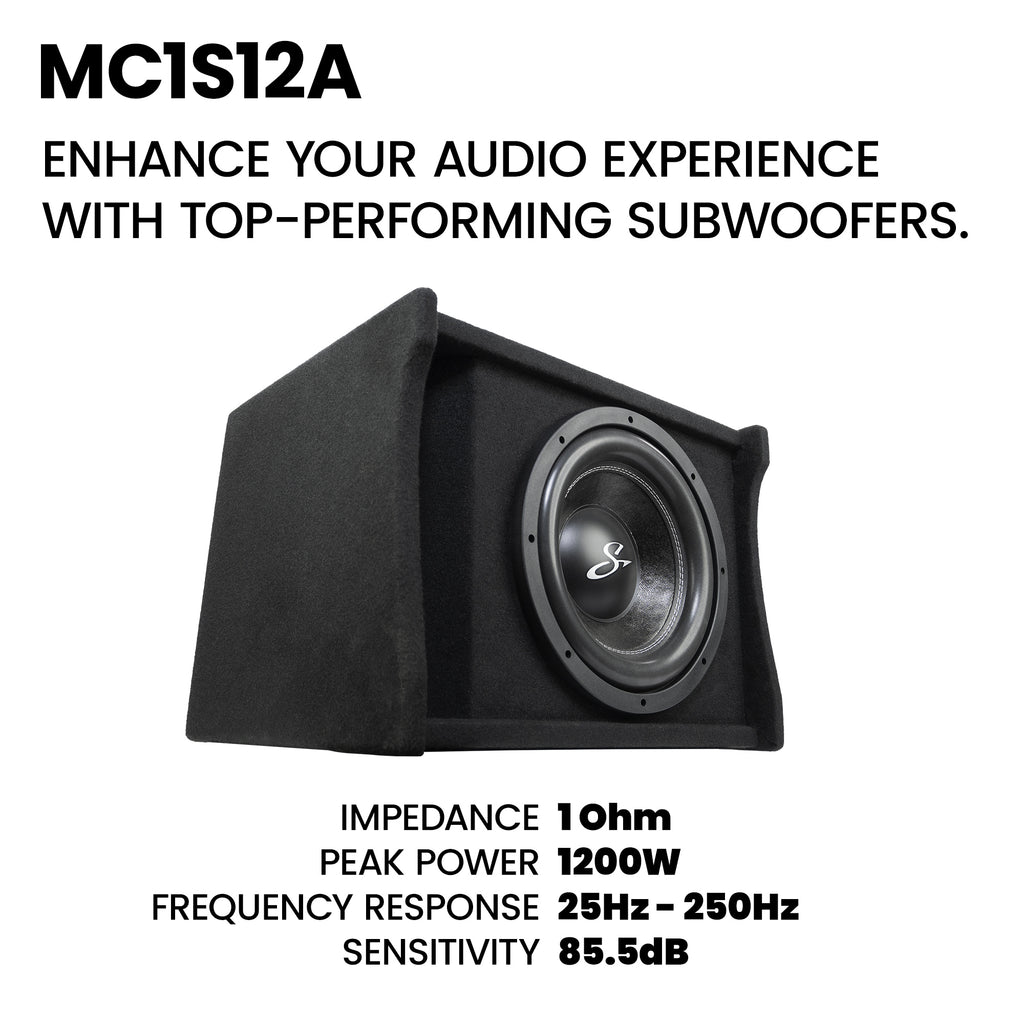

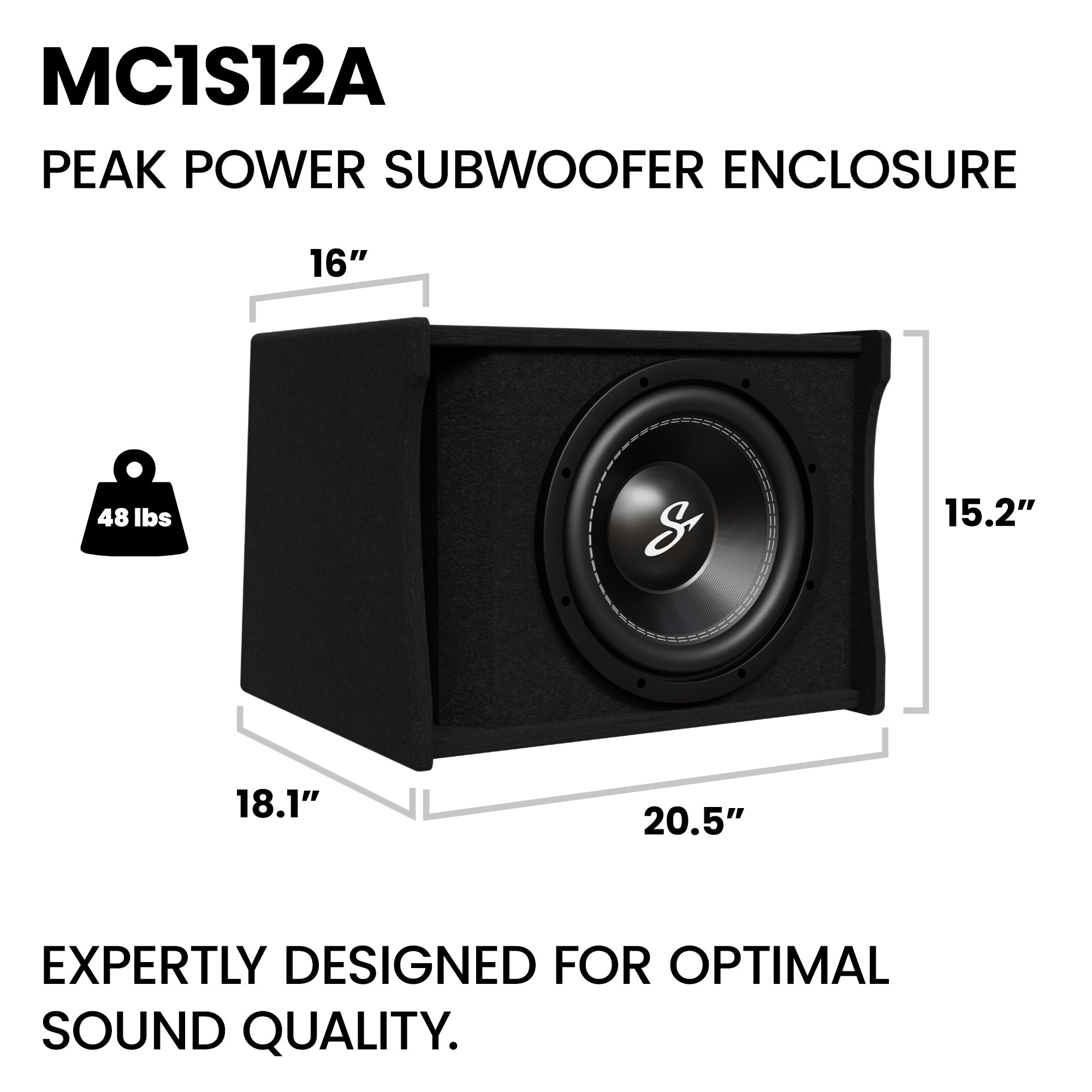

Loaded Subwoofer Enclosure Specifications
|
Model Number |
MC1S12A |
| Woofer Size | 12" |
|
Speakers Per Box |
1 |
|
Frequency Response |
25Hz - 250Hz |
|
Sensitivity |
82.5 dB |
|
Enclosure Type |
Slot Ported |
|
Enclosure Material |
3/4" MDF |
|
Finish |
Black Carpet |
|
Width |
20.5" |
|
Height |
15.2" |
|
Depth 1 (Bottom) |
18.1" |
|
Depth 2 (Top) |
16" |
|
Weight |
48lbs |
|
Connector Type |
Spring-Posts |
|
RMS Power |
700W |
|
Peak Power |
1200W |
|
Final Impedance |
1 Ω |
|
Tuning Frequency |
35Hz |

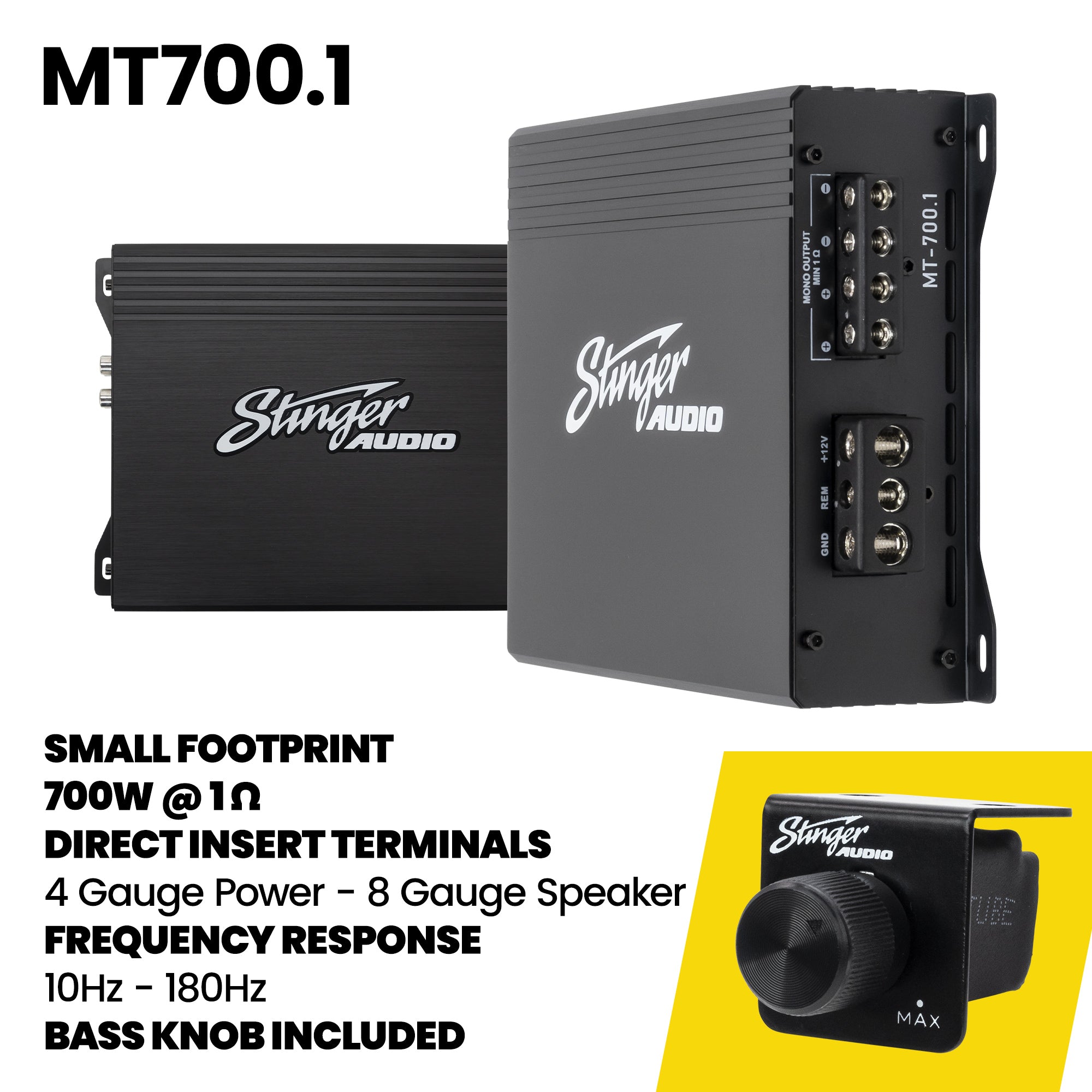

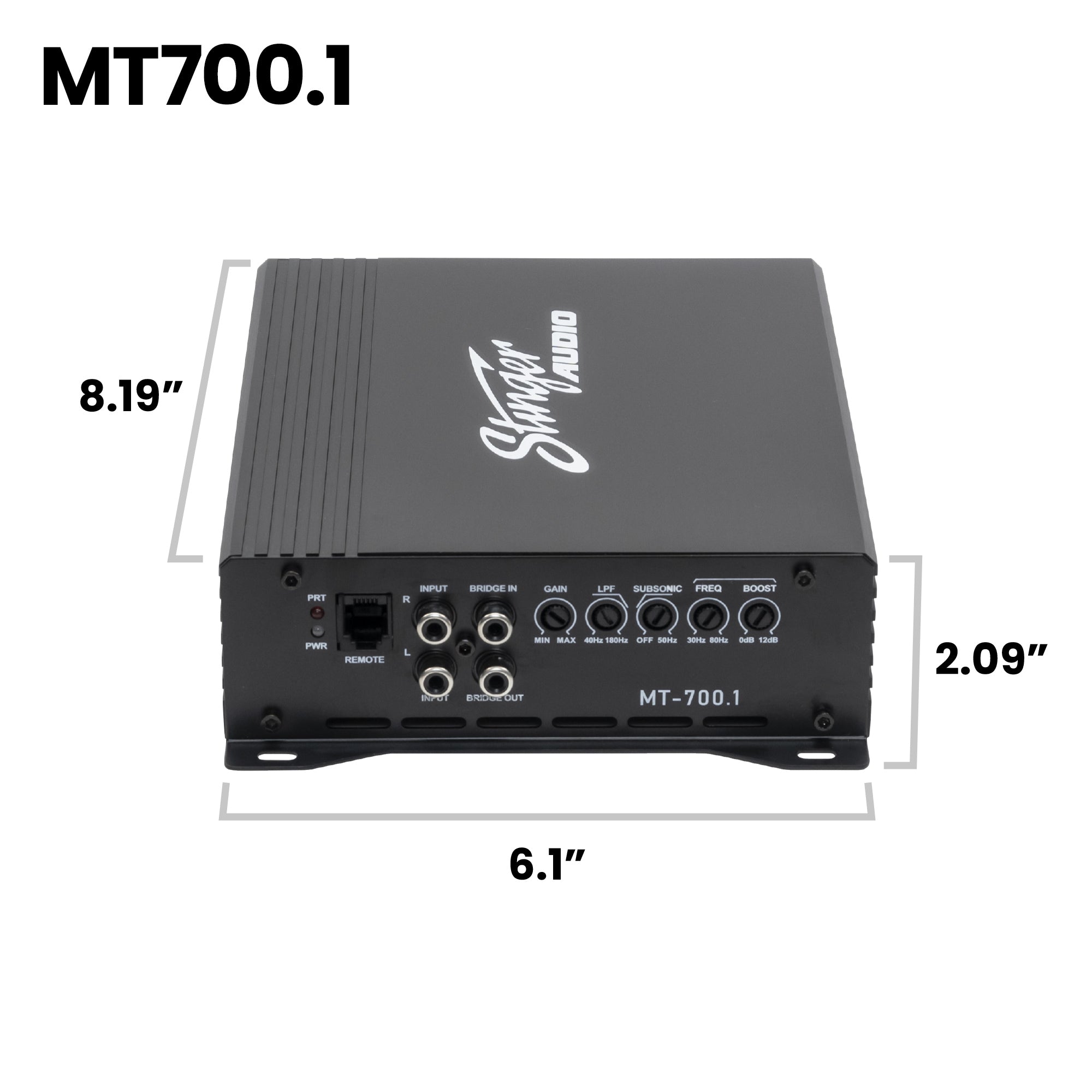

Monoblock Class D Car Amplifier Specifications
|
Model Number |
MT-700.1 |
|
Number of Channels: |
1 |
|
1Ω: |
700 Watts x 1 Channel |
|
2Ω: |
500 Watts x 1 Channel |
|
4Ω |
300 Watts x 1 Channel |
|
Bridged RMS Rating / 2Ω Minimum |
1200W x 1 |
|
Signal to Noise (@ CEA Standard) |
-93db |
|
Input Sensitivity 0.2-6v |
0.2-6v |
|
Gain |
0.2v - 6v |
|
Crossover Control, Linkwitz-Riley |
SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct |
|
Bass-Boost Frequency Range |
30-80 Hz |
|
Bass-Boost Q |
0-12dB |
|
Frequency Response (+- 1dB) |
10Hz - 180Hz |
|
Efficiency (Average) |
85% |
|
Topology Class: |
Class D |
|
Remote Bass Control |
Included |
|
Operating Voltage |
9V to 16V |
|
Power Terminals: |
4 Gauge |
|
Speaker Terminal: |
8 Gauge |
|
Recommended External Fusing |
80A |
HEXFET® is a registered trademarks of International Rectifier Corporation.

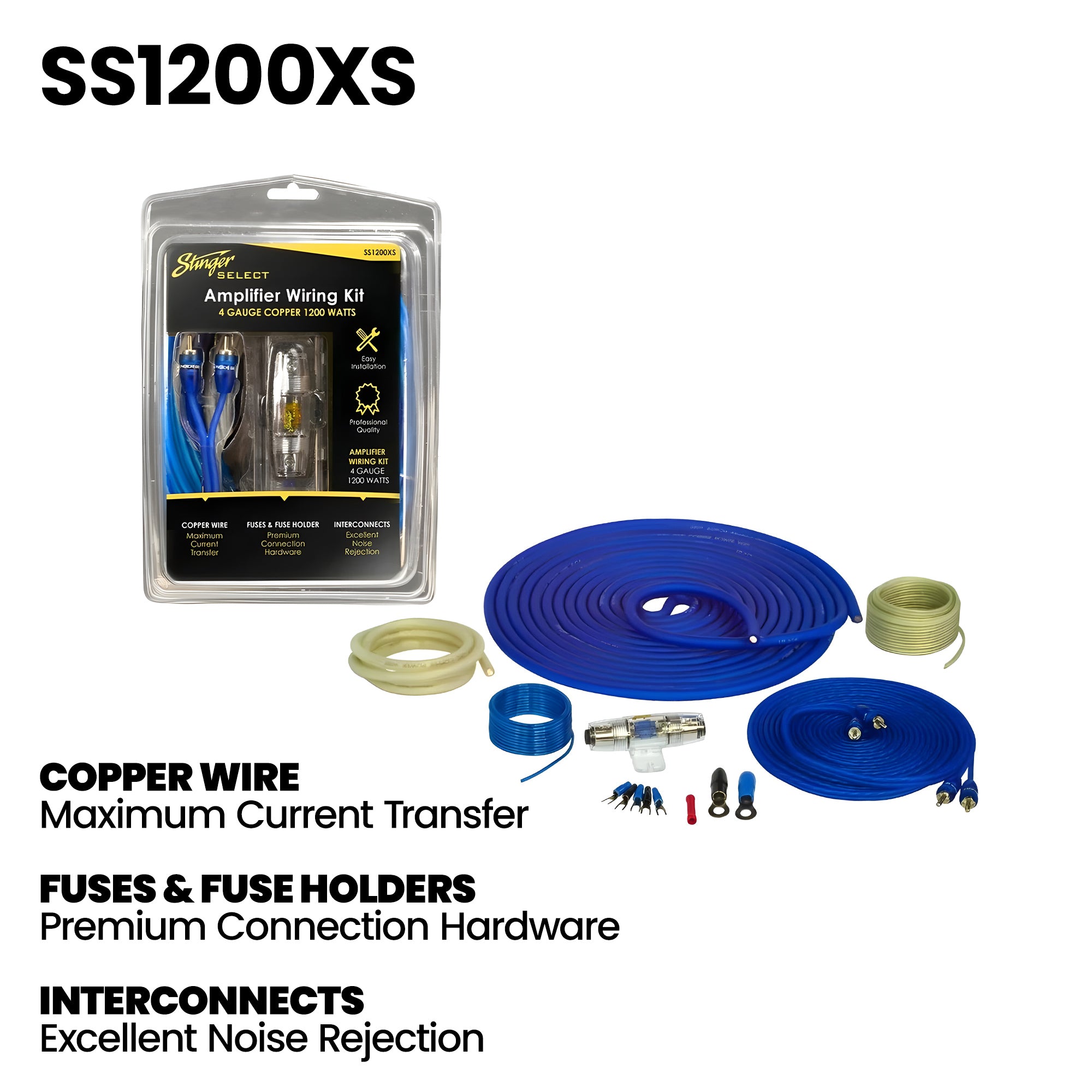

4GA Wiring Kit Specifications
| Model Number | SS1200XS |
| Size | 4 GA |
| Power | 1200 Watt |
| Translucent Blue Power Wire | 17FT |
| Translucent Silver Ground Wire | 3FT |
| Translucent Blue Twisted Pair RCA Interconnect |
17FT |
| Blue Remote Turn-on Wire | 16FT |
|
Translucent Speaker Wire |
20FT |
Warranty Information
We have a 30-day easy return policy for all purchases.
We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.
Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released.
Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.
Note: Products purchased from unauthorized dealers are not covered under warranty.
Warranty Limitations
Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty.
