HORIZON10 Dodge Challenger/Charger/Chrysler 300 (2015-2023) 10" Radio Fully Integrated Kit | Displays Vehicle Information

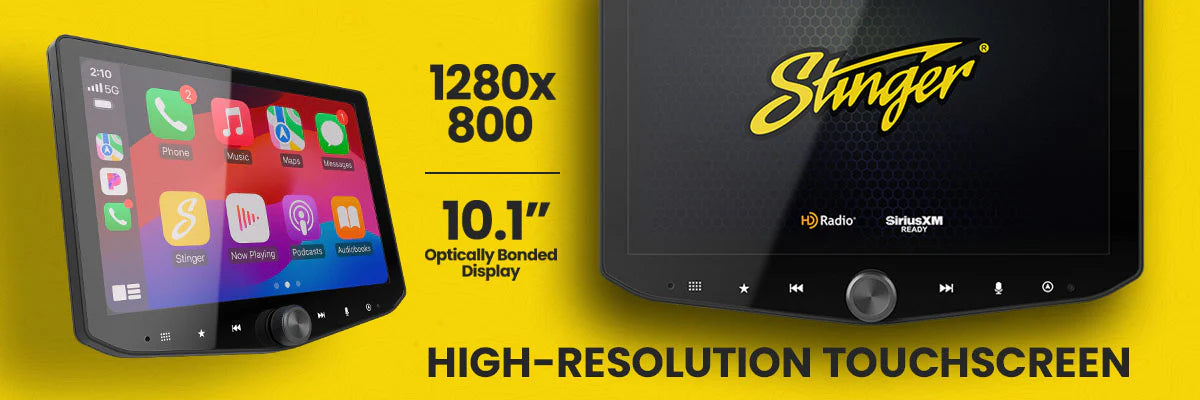

• High-Resolution Touchscreen: 10.1" 1280x800 HD screen with anti-glare, anti-reflection, anti-fingerprint film protection.
• IP65 Weather Resistant Display: Optically bonded for dust and moisture protection (*Radio Chassis is not IP rated).

• On-Screen Vehicle Information: Vehicle-specific screens and apps with many user customizations.

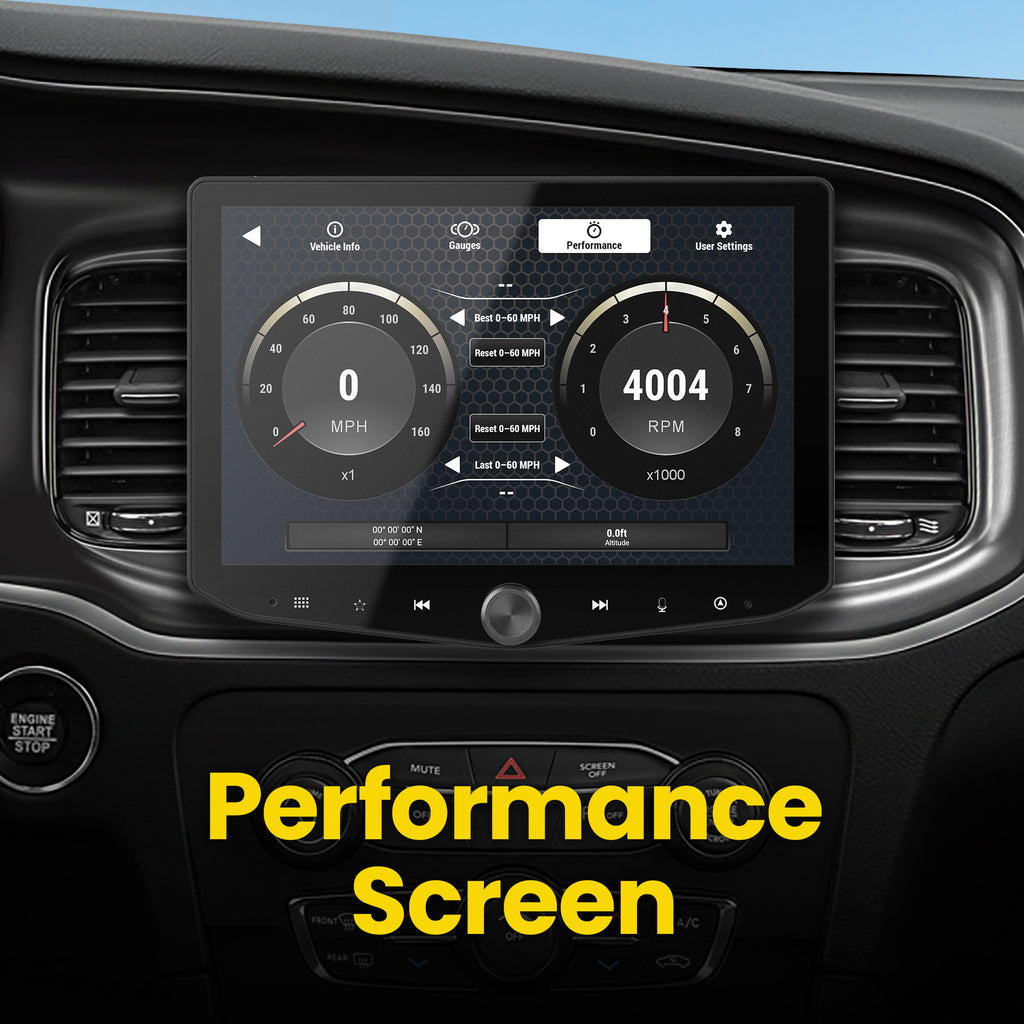

  • Performance Console: Track your speed and RPMs at a glance while the Performance Console records your best 0-60 mph times, braking distances, and quarter-mile runs.


  • Vehicle Gauges:Display up to eight critical metrics—like battery voltage, oil pressure, and transmission temperature—all on one screen. Save up to two presets, so you always have the data you need, whether cruising around town or taking on intense drives.

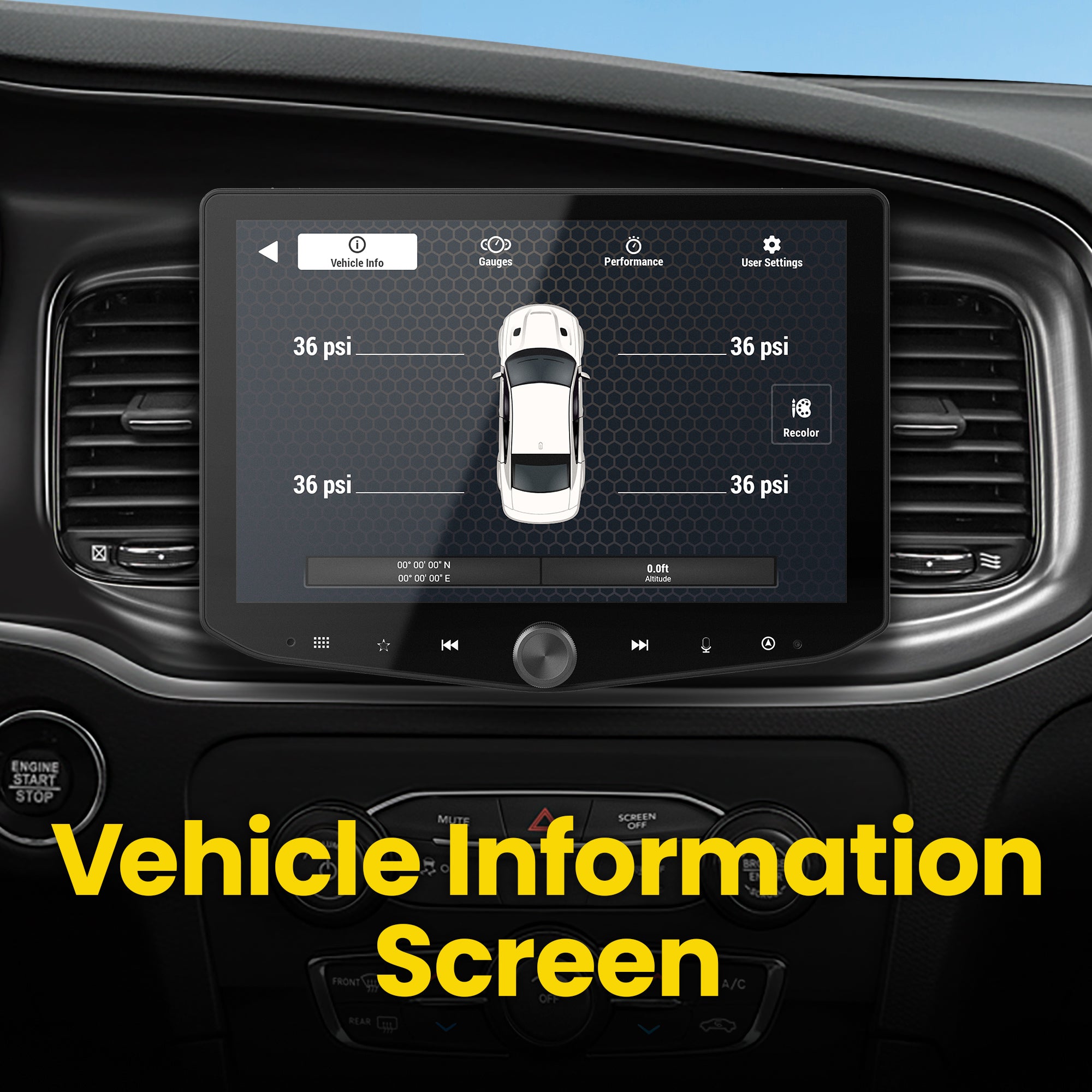

  • Vehicle Info:Monitor tire pressure with custom alerts, get real-time updates on door status, and even view and clear check engine codes—all from your dashboard.


  • Climate Control: Stay comfortable and in control with the HORIZON10’s integrated on-screen climate controls! Effortlessly adjust your vehicle’s temperature, fan speed, and airflow with a simple touch, all from the same sleek display.


• Retain OEM Features: Retains many features you love in your ride, including full HD for cameras, steering wheel controls, USB ports, and more.


• Plug-and-Play Install: Users can easily connect the Stinger HORIZON10 Radio Kit to their vehicle's existing wiring harness without the need for any additional modifications or complex wiring procedures. This ensures a hassle-free installation experience, saving time and effort.

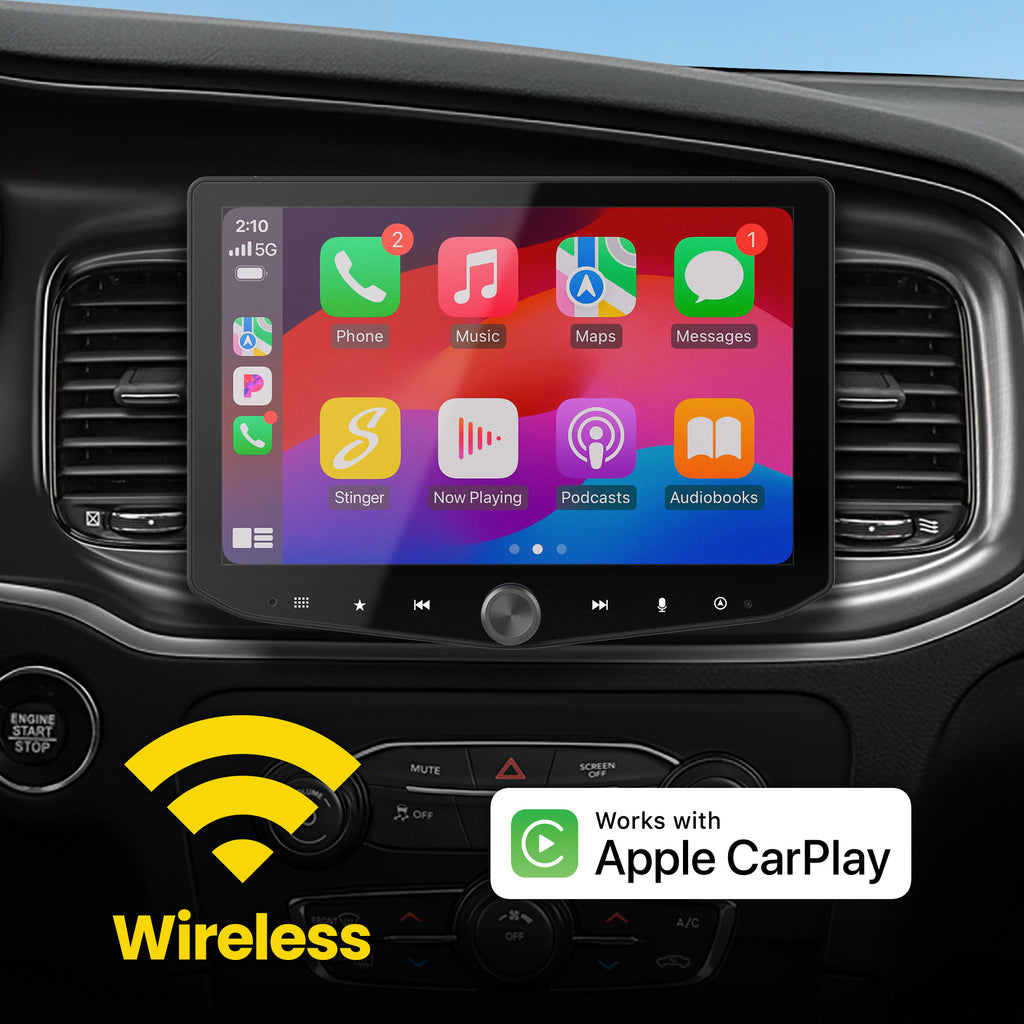

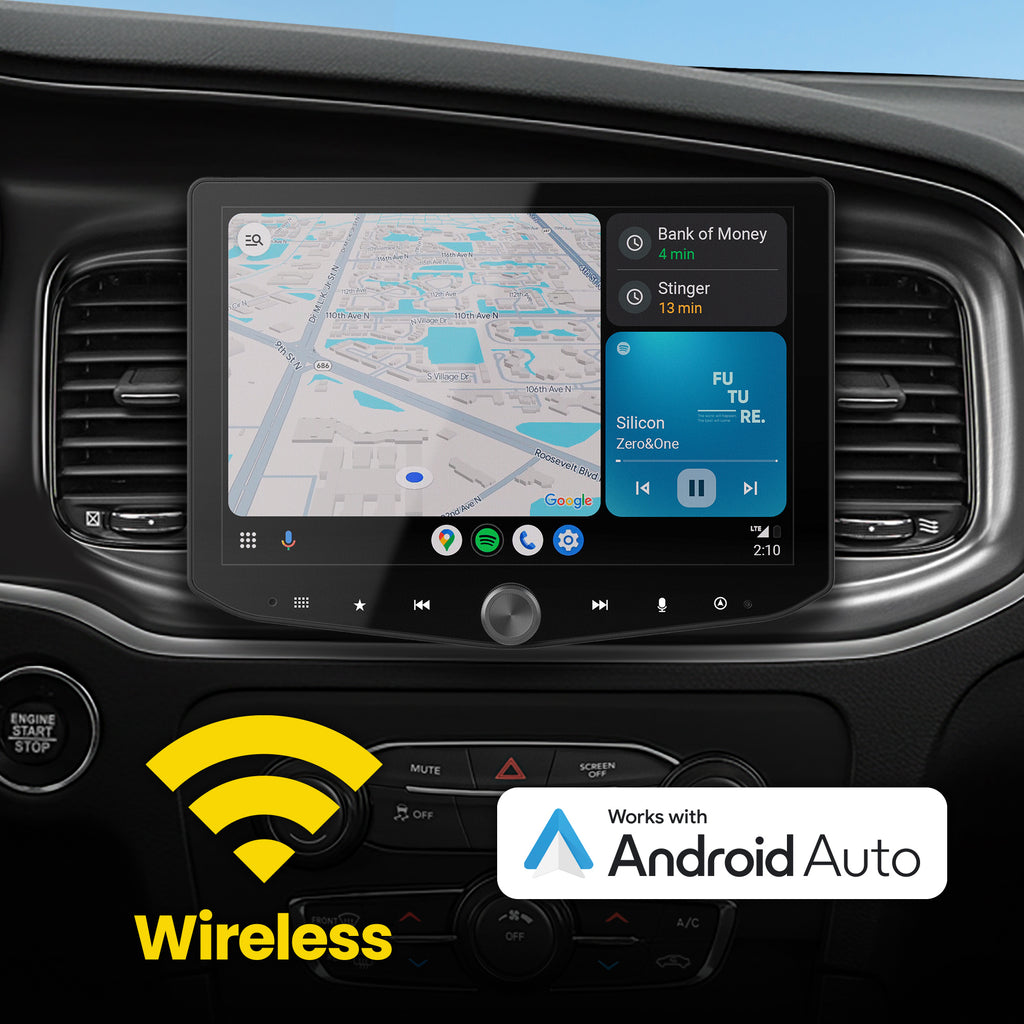

• Smartphone Connectivity: Compatible with Bluetooth and Apple CarPlay/Android Auto (wireless & wired usb-c) to access map navigation, phone contacts, notifications, music, hands-free calling, and much more.



• SiriusXM-Ready: Offers a vast array of music, sports, and entertainment options (SiriusXM Connect Vehicle Tuner sold separately: SXV300).

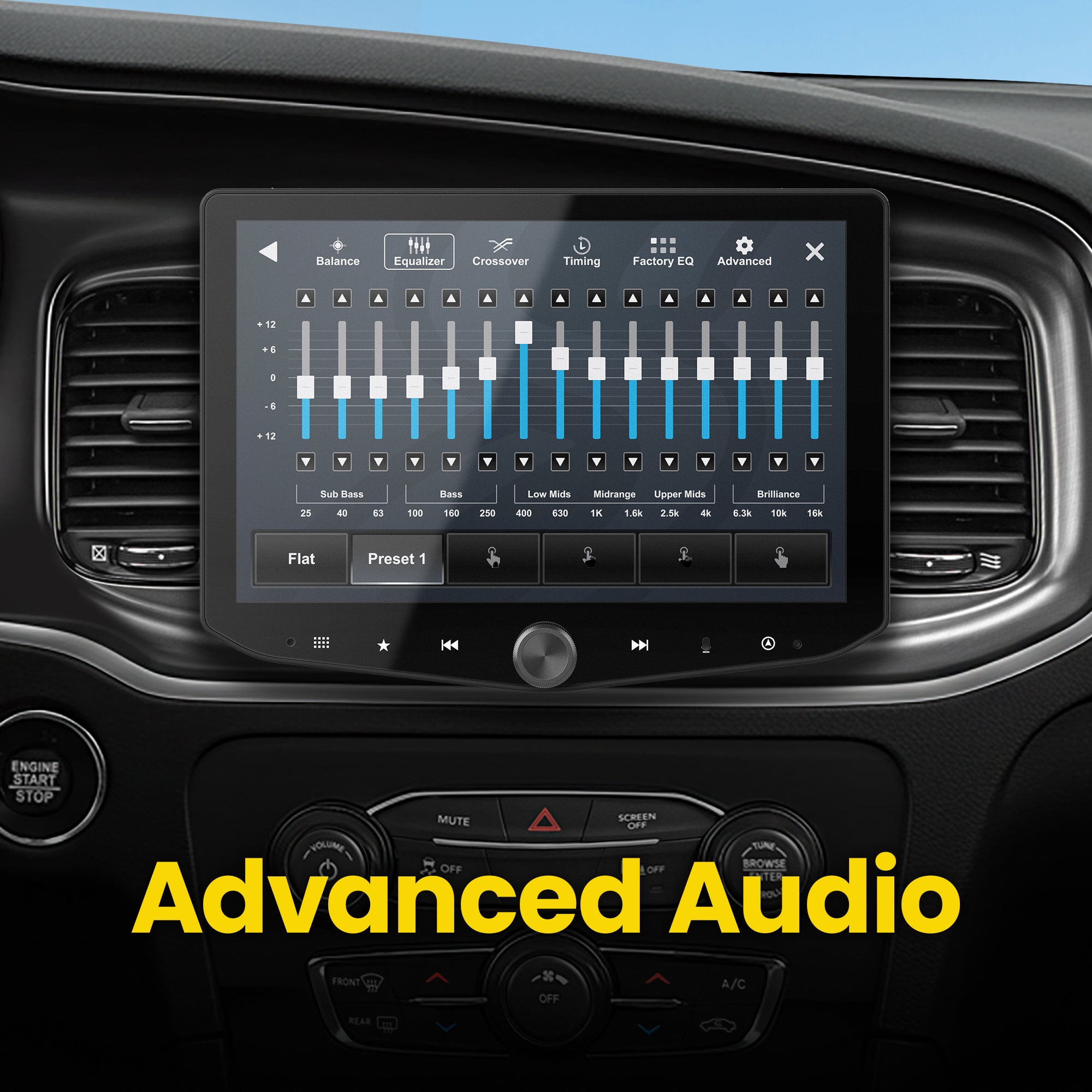

• Advanced Audio Features: Enhance the overall listening experience with a 15-band equalizer, capable of saving up to six custom presets, and enjoy superior Hi-Fi audio playback.



• HD Radio: Enjoy more local stations with clear digital sound, no static, and no subscription fees. Get access to additional content without the hassle of monthly payments.


• Accessory Control: Easily control up to four accessories on-screen with customizable icons (relays needed, SwitchHub recommended).


• AudioControl Compatibility: On-screen control of AudioControls's DM series processors and amplifiers for instant tweaks without the need to connect to a laptop or tablet.


• ENLIGHT10 Lighting Integration: Illuminate your ride and benefit from superior visibility with dynamic LED lighting that can be controlled on-screen.



• 4 Camera Inputs: The HORIZON10 kit allows up to four camera inputs via camera mode display.

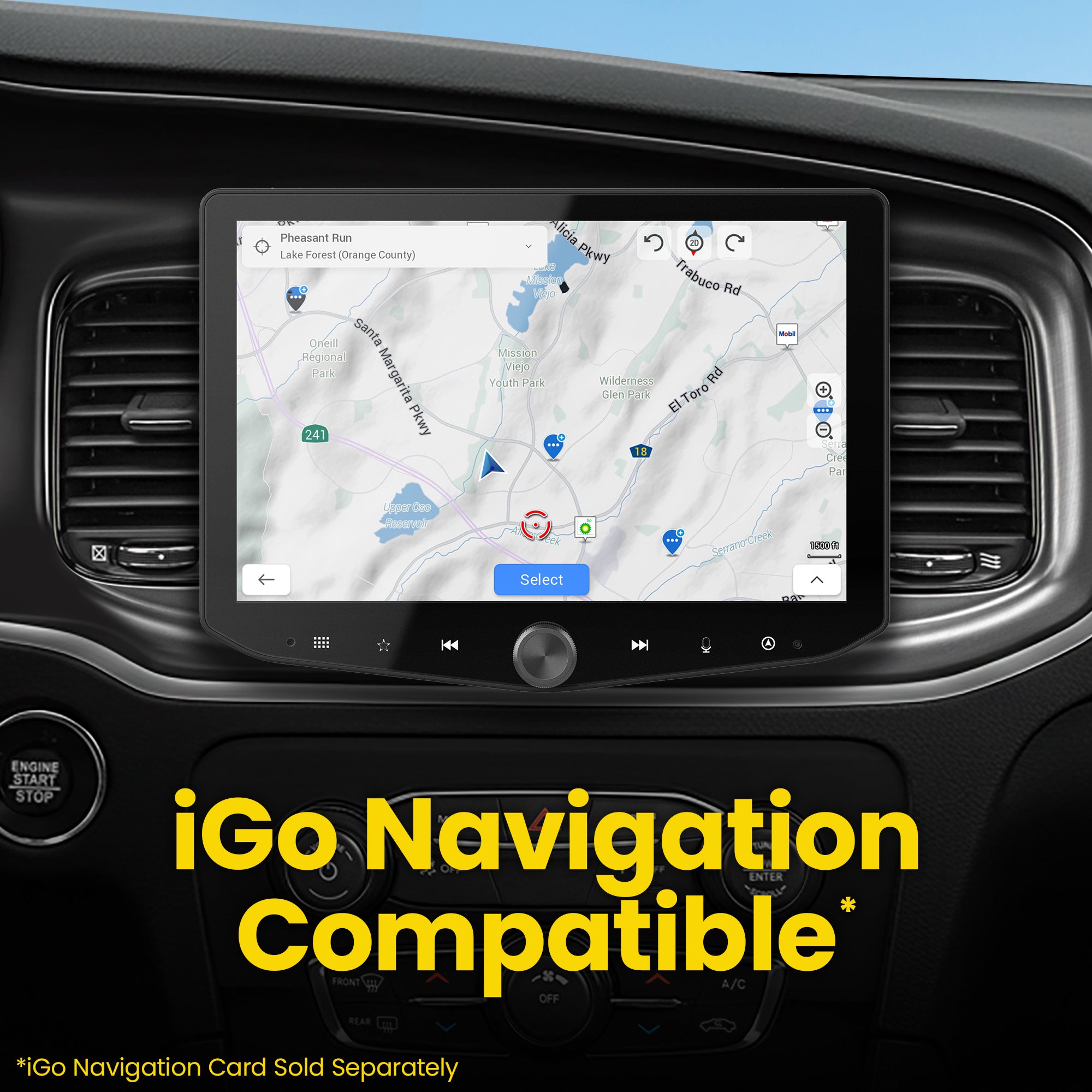

• iGO Navigation: This advanced 10" radio has a built-in network-free navigation system. Whether you find yourself in an area with limited data or without cell phone coverage, you can rely on the GPS navigation feature of your head unit to guide you to your destination seamlessly. (Please note the iGO Nav SD Card is required for navigation functionality and can be purchased separately.)


• Includes Everything you Need for Installation: 10” display, a vehicle-specific interface that retains OEM functions, OEM antenna adapter, custom-fit dash kit, dual USB ports, and an installation guide.



Experience the latest automotive luxury with the Stinger HORIZON10 10” Radio Kit. This kit integrates style and functionality for the Dodge Challenger/Charger or Chrysler 300. On-screen vehicle information provides a personalized touch and enhances your driving experience. Connect your smartphone effortlessly with wireless (or wired usb-c) Apple CarPlay and Android Auto compatibility, accessing navigation, contacts, notifications, and more. Installation is hassle-free with plug-and-play capability. Multiple camera inputs ensure safety, while audio enhancements elevate your sound experience. Add optional integrated navigation for thousands of waypoints. The HORIZON10 radio kit includes a 10" display, custom-fit dash kit, and more. Upgrade your Dodge or Chrysler vehicle, and get ready to take on any adventure!  Compatible years: Dodge Challenger/Charger/Chrysler 300 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023.

Not compatible with SRT or Hellcat trim levels.

Not compatible with 2015 model year vehicles equipped with drive modes.

• 10-inch touchscreen display and infotainment system
• RadioPro Interface for Dodge Challenger, Dodge Charger, Chrysler 300 (2015-2023)
• Dodge/Chrysler radio dash kit (SRK-CHR15HX)
• Complete Plug-n-Play installation harness
• PAC-LINK communication module
• Antenna adapters for satellite and AM/FM radio
• SiriusXM Adaptor (retain factory-installed SiriusXM antenna)
• Tuner sold separately & not on Stinger: SXV300V1
• Replacement USB hub (Dual USB, HDMI, aux-input)

• RPA-SPK safety chimes speaker
• Hardware kits

• Installation Guide
• User Guide

User Guide

Dodge Challenger Installation Guide

Dodge Charger Installation Guide

Chrysler 300 Installation Guide

• Model Number: RB10CHR15X
• Plug-and-Play: Yes
• Mounting Design: Single Din
• Recording Resolution: 1280 x 800
• Screen Size: 10.1"
• Manufacturer's Warranty: 1 year

• Operating Voltage: 10.5VDC to 16VDC
• Grounding system; Negative Ground
• Max current consumption: 15A fused

• Radio Module: 177.7 mm x 112.96 mm x 50 mm (WxHxD)

• Display: 247.2 mm x 180.56 mm x 36.19 mm (WxHxD)

• 10.1- inch Diagonal

• 16:10 aspect ratio

• 1280 × 800

• Pixels: 1,024,000

• Active area 216.96 (W) x 135.6 (H) mm

• Operating Temperature (C) -20° to 70°

• Load impedance: 4 Ω nominal / 2 Ω allowable

• Continuous power output: 18W x 4ch/4 Ω 20Hz to 20KHz, 1% THD at
  14.4V

• Speaker level adjustment: 0-40 steps

• Audio Preamp Output level: 4.5Vrms typical

• Audio Preamp 8 Channels: Front 1 Left, Frontl Right, Front 2 Left, Front 2 Right,
• Rear Left, Rear Right, Subwoofer Left, Subwoofer Right.

• Equalizer: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz
• Gain: +/-6dB (0.5dB/step)

• Crossover level: 10 steps

• Front 1 and Rear output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass

• Slope: 6dB, 12dB, 18dB

• Level: 0-15,1db/step

• Front 2 output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass
  LPF: 25Hz|40Hz/63Hz|80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass

• Slope: 6dB, 12dB, 18dB level: 0-15,1db/step

• Subwoofer Pre-lineout: 4.5Vrms typical, 7vrms maximum without distortion

• LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160H
  z/250Hz

• Slope: 6dB, 12dB, 18dB

• Gain: 0db to 15dB (1dB/step)

• Subwoofer level: 0-15, 1db/Step Phase: 0 or 180

• Time Alignment for 8 channels: 0 to 133 steps for inches and 0-99 steps for
  9.9ms

• User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat.

• Source Gain: default 0db, -10 to 10 adjustable, 0.35db/Step.

• Volume Settings: Main Volume, Phone Volume, Navigation Volume, Voice Volume, Ringtone Volume adjustable separately.

• Supports Internal & External Smart DSP
• AKM AK7739 Audio Processor
• DAC- Advanced 32bit

• USB 2.0 (two)

• Max current supply 1.5A

• Max storage size: 128GB

• USB Class: A

• Supports: Video/Audio/Image Media

• Playback, Charging, and Firmware Update

• USB 3.0 (one)

• Max current supply 3А

• Max storage size: 128GB

• USB Class: C

• MSC (Mass Storage Class), MTP (Media Transfer Protocol)

• File system: FAT32, NTFS
• *Supports: Apple CarPlay, Android Auto, Video/Audio/Image Media Playback, Charging, and Firmware Update
  • *When connecting Apple Car Play or Android Auto via USB, only USB-C connection is compatible.

• V5.1 dual

• 4dBm Class2

• 2.4GHz to 2.48GHz

• Support lEEE 802.11a/b/g/n/ac

• Support 802.11ac 1xl, Wave-2 compliant with MU-MIMO STA mode

• Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band

• 87.9MHz to 107.9MHz

• Usable sensitive 3dBuv (mono S/N: 30dB)

• SNR: 65dB

• 530KHz to 1710KHz

• Usable sensitive 25dBuv (mono S/N: 20dB)

• SNR: 58dB

• NTSC, PAL, AHD 25 & 30 mhz

• Mirror Camera Image

• 4x Accessory Control w. custom icon, name, & switch behavior

• Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720р, 1920*1080i, 1920*1080р

• Output: 48khz Variable

• MPEG-1 Audio Layer-3 (mp3)
• FLAC (flac)
• MPEG-2 Advanced Audio (.aac)
• MPEG-4 Audio (m4a)
• Windows Audio (wav)
• OGG Audio (ogg)
• MP1
• MP2
• AAC
• AMR-NB
• AMR-WB
• APE
• PCM / ADPCM
• VORBIS
• OPUS
• WMA
• AC3/DDP
• DTS

• MPEG-4 Video, H.264 (.mp4)
• Microsoft AVI (.avi)
• MPG Video (.mpg)
• MPEG Video 1/2 (.mpeg)
• VOB DVD (.vob)
• Flash Video (.flv)
• MPEG-1
• MPEG-2
• H.263
• H.264
• H.265 (HEVC)
• WMV 7/8
• VC-1
• VP8
• M-JPEG

• JPEG (.jpg)
• CompuServe GIF (.gif)
• PNG (.png)
• JPEG (.jpeg)
• Bitmap (.bmp)

• File Format: JPG / PNG
• Resolution: 1280 x 800

• Not compatible in SRT or Hellcat trim levels
• Not compatible in 2015 model year vehicles equipped with drive modes
• Does not retain Launch Control with Launch RPM

• Does not retain Launch Control Timers on vehicles multi-function display

• Does not retain Line Lock

• Does not retain G-Force status on radio (still on instrument cluster)

Download the Latest HORIZON10 Firmware Here
