Description
Product Highlights
Features
• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• ParaBASS® Controls for Bass Shaping: Precisely sculpt and fine-tune your bass to perfectly match your music, vehicle, and personal preference.
• Selectable PFM Subsonic Filter with Bypass: Protect your speakers and ensure tighter, more controlled bass by filtering out inaudible, power-wasting frequencies.
• Built-in Line Driver for Optimal Output Voltage: Boosts your audio signal for a strong, clean path to your amplifiers, minimizing noise and maximizing sound quality.
• Balanced Line Level Inputs: Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
• Speaker-Level Inputs: Seamlessly integrate a factory stereo without needing RCA outputs, saving money and simplifying upgrades.
• Load Selection Switch: Ensures perfect compatibility with modern factory stereos, preventing issues and guaranteeing a smooth upgrade.
• GTO and Audio Sense Turn On: Automatically powers up the unit when your stereo is active, making installation simpler and operation seamless.
• 10 Volt Maximum Output Level: Sends a strong, clean signal to your amplifier, unleashing maximum power and dynamic impact.
• Conformally Coated PCB: A protective layer against moisture, dust, and temperature swings, improving the durability and reliability of The Epicenter Micro PRO.
• ACR-4 Dual-Knob Remote Level Control Included: Command your bass instantly from the driver's seat, fine-tuning levels and bass restoration on the fly.
Description

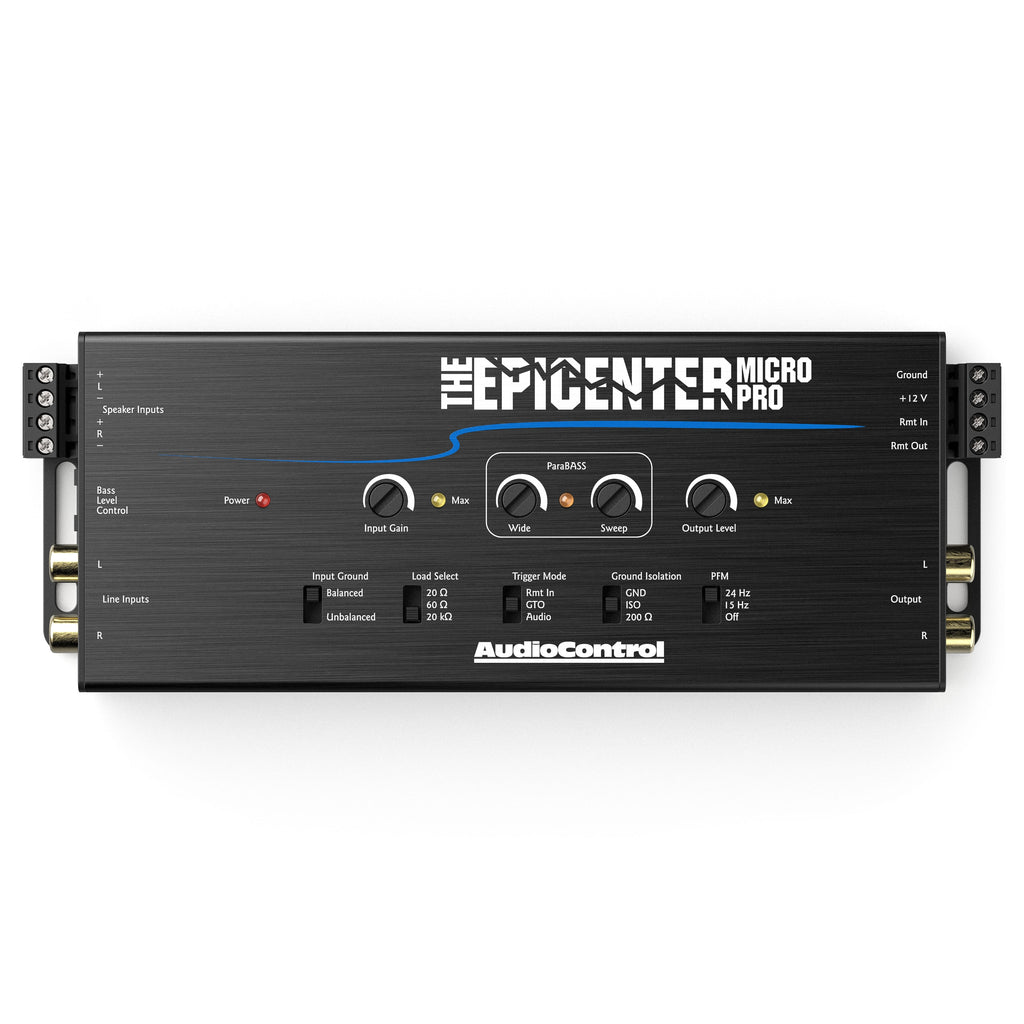

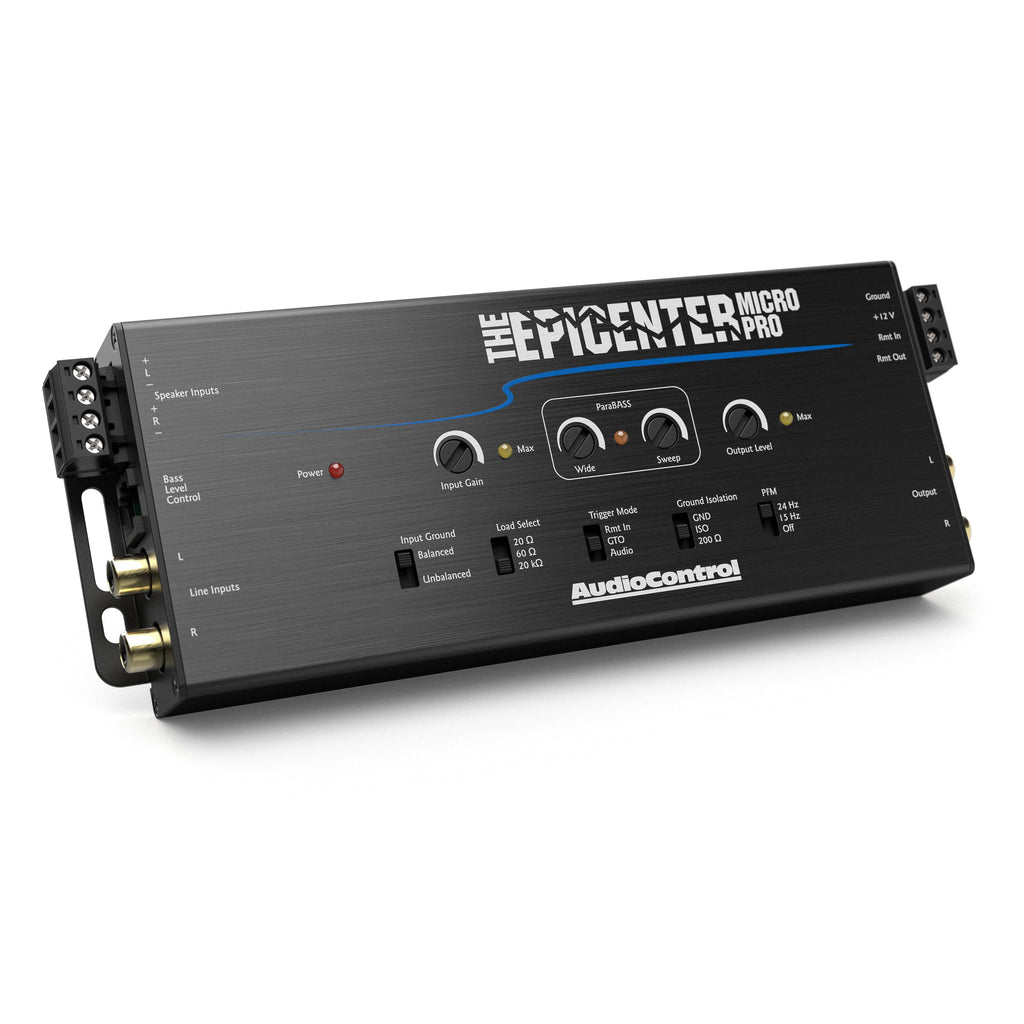

Building on the powerful features of The Epicenter Micro and everything you have come to know and love about AudioControl’s legendary bass processing, The Epicenter Micro PRO adds more control and tuning potential for those who wish to push even further into the unexplored outer realms of extreme bass performance.
Bass Maximizer – The Epicenter® Micro PRO is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The Epicenter® Micro PRO to drop down a few octaves and reproduce the “missing” bass notes.

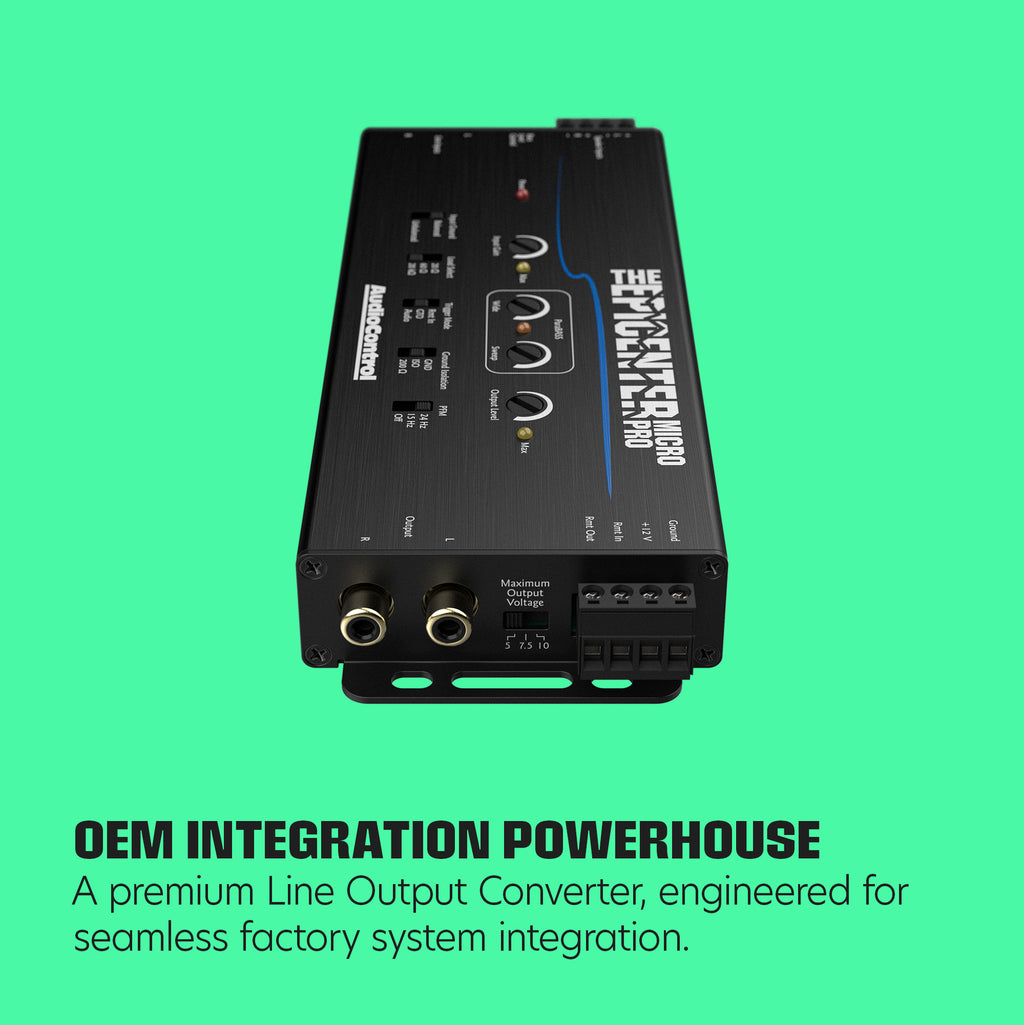

Line Output Converter - Beyond maximizing bass, The Epicenter® Micro PRO is a line output converter packed with premier
OEM integration features like AudioControl’s Load Matching Circuit (LMC) with Load Select, multiple Trigger Modes, and selectable Ground Isolation. For power-users, the PFM Subsonic Filter can be selected or bypassed and Output Voltage can be configured for up to 10 Volts!
Related Products
Efficiently install your EPIC Series Amplifier—whether it’s the monoblock amplifiers EPIC750, EPIC1000, EPIC1500, EPIC200, or the 5-channel amplifier EPICFIVE —by connecting it directly to The Epicenter Micro PRO using the included Epicenter Link. This advanced connection simplifies the setup process by combining power and remote functionality into one streamlined system while enriching your overall car audio experience. With this ideal integration, you’ll enjoy perfectly synchronized bass restoration and control, allowing you to fine-tune your sound effortlessly. Elevate your sound with powerful, dynamic bass, all while keeping your system easy to manage and operate.

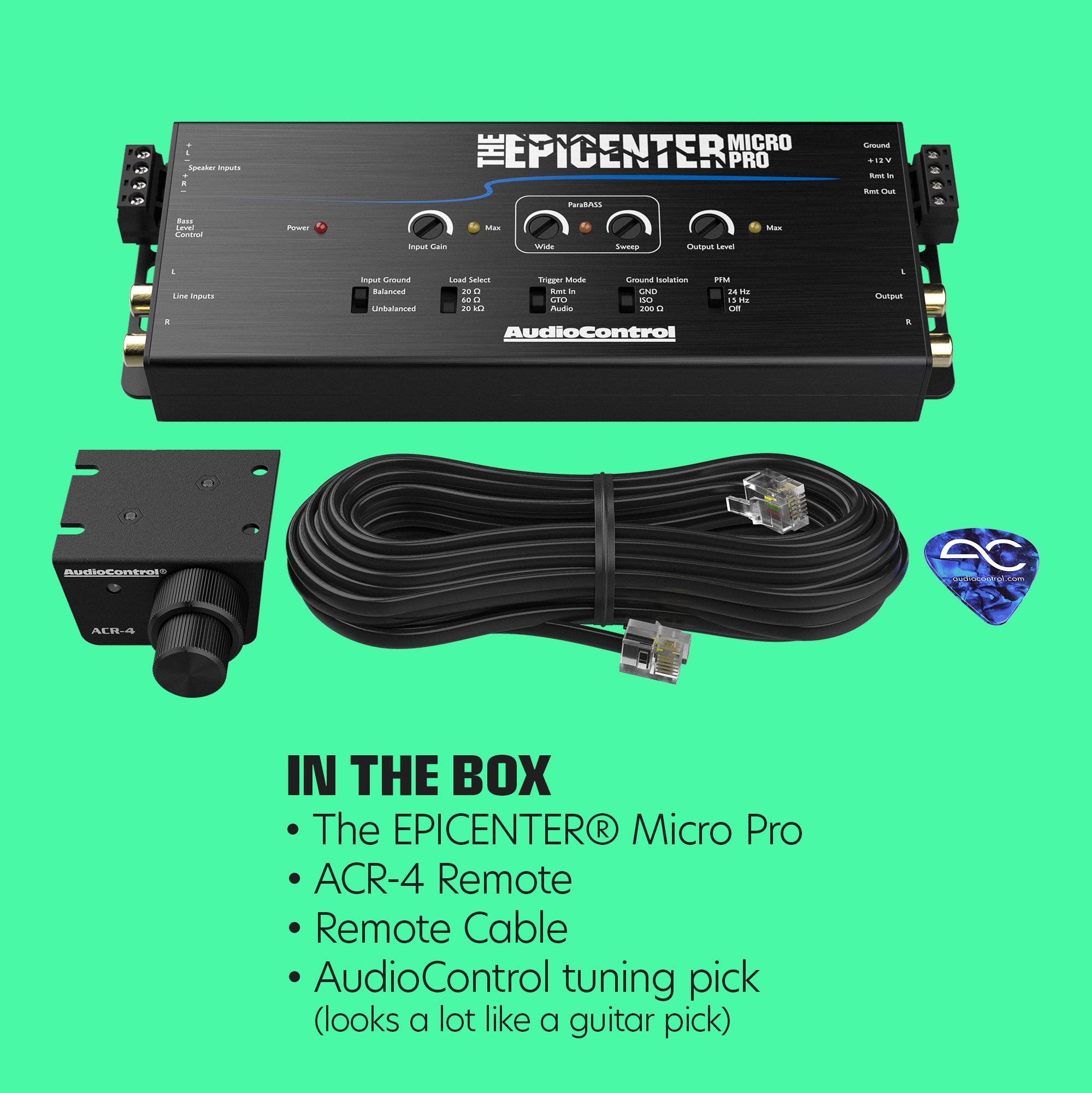

What's in the Box
- Epicenter Micro PRO Bass Restoration Processor
- Two 4-pin Phoenix connectors (installed)
- ACR-4 wired remote control (dash mount)
- Remote cable
- 1.5mm Hex key
- User Guide
Specifications
|
Maximum Line Level Input |
10 volts RMS |
|
Maximum Speaker Level Input |
40 volts (400 watts) using 20 kΩ input load setting |
|
Line Input Impedance |
7 kΩ |
|
Speaker Level Input Impedance |
20Ω, 60Ω, 20 kΩ |
|
Maximum Output Level |
9 volts RMS/13 volts peak |
|
Output Impedance |
150 ohms |
|
THD |
0.03% |
|
Frequency Response |
10 Hz-22 kHz; ±1dB |
|
S/N Ratio |
>105 dB |
|
PFM Subsonic Filter |
Selectable 24 Hz, 15 Hz, or bypass |
|
Current Draw |
300mA |
|
Recommended Fuse |
1-amp |
