Powerful and Compact: This digital Class-D amplifier delivers impressive power in a space-saving design.
-
Optimized for Peak Performance: Designed for maximum power output, stable down to a 1-ohm load.
Description
Product Highlights
Features
-
Seamless Integration with The Epicenter: Simplify installation by connecting directly to The Epicenter and The Epicenter Micro with the included Epicenter Link, combining power and remote functionality for a hassle-free experience.
- Convenient Remote Control: Adjust your sound effortlessly with the included ACR-E Remote Control knob, giving you full control at your fingertips.
- Smart Protection Features: Equipped with multiple protection modes, including over-current, over-voltage, and over-temperature safeguards, ensuring long-lasting, reliable performance.

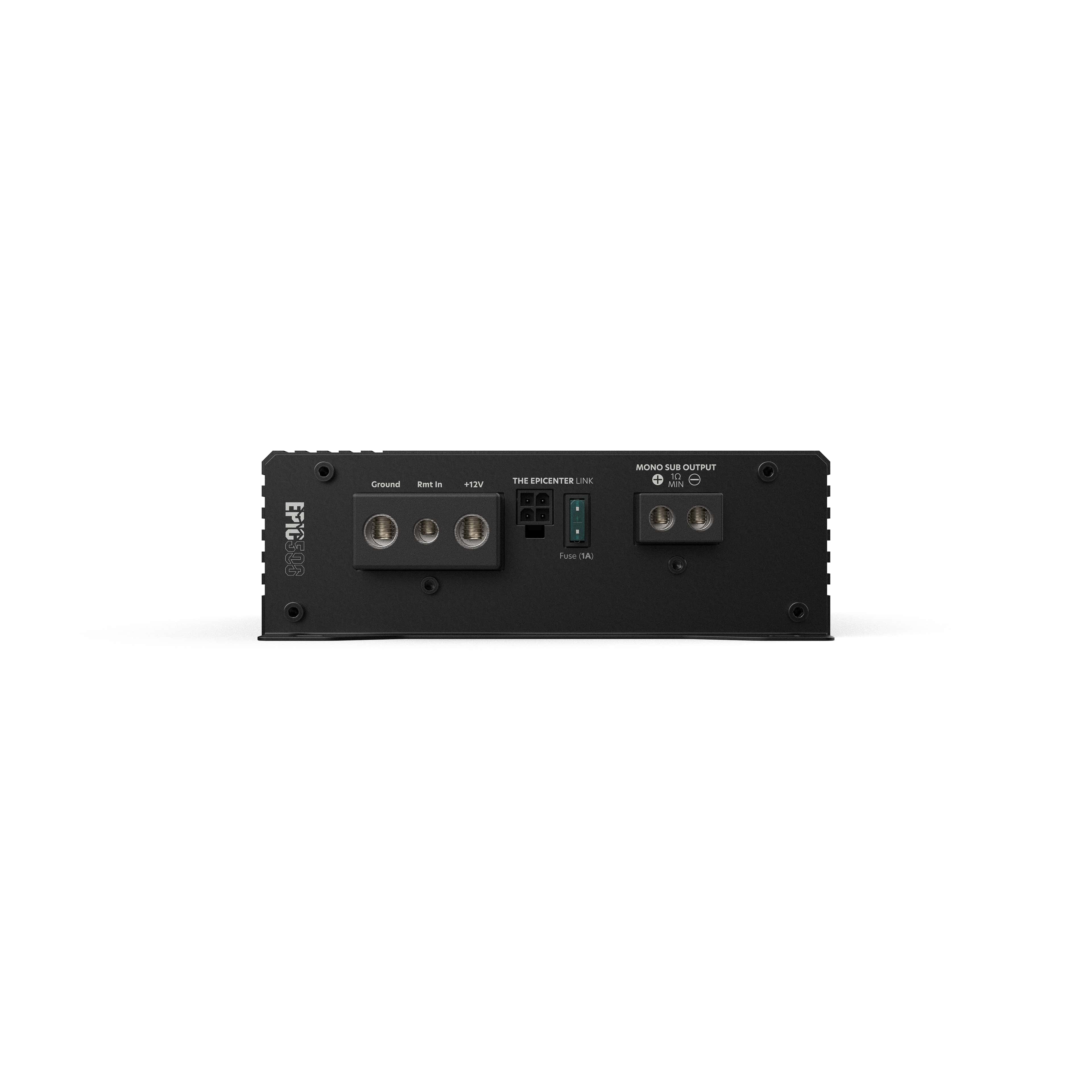

- Secure and Efficient Connections: Direct wire terminals with Hex screws and large gauge power terminals ensure solid connections and maximum current flow.

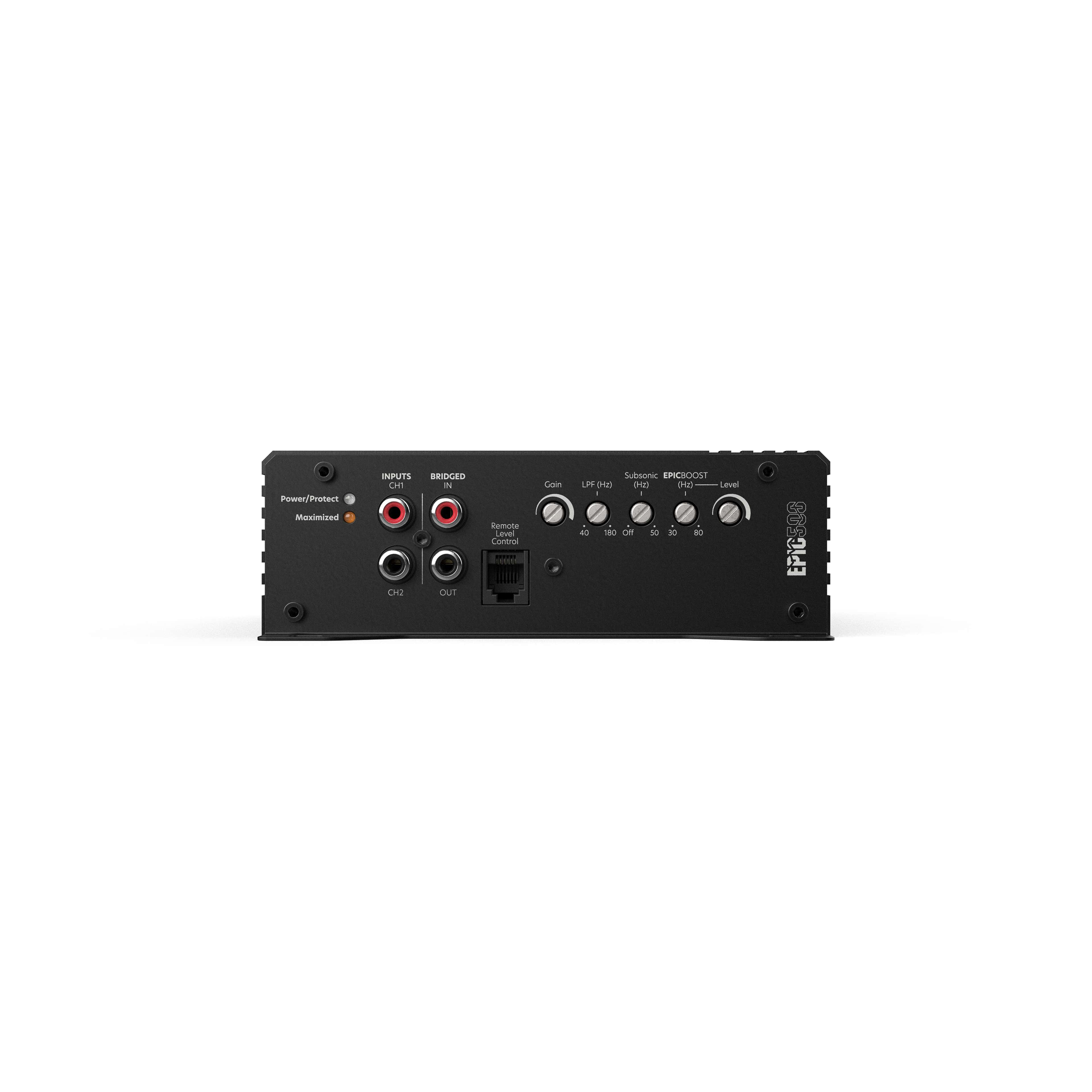

- Customizable Sound: Features adjustable low pass and subsonic filters to match your subwoofer and speaker frequencies for optimal audio performance.
Description

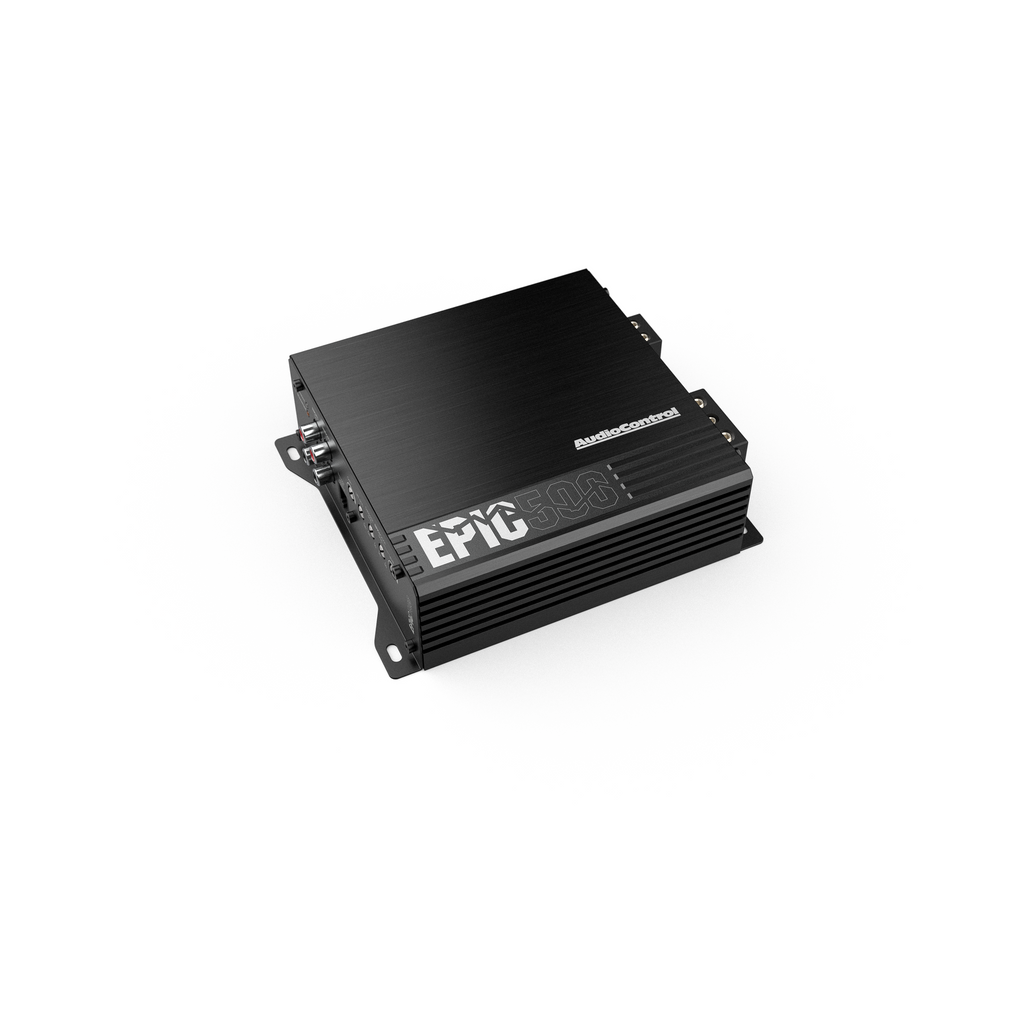

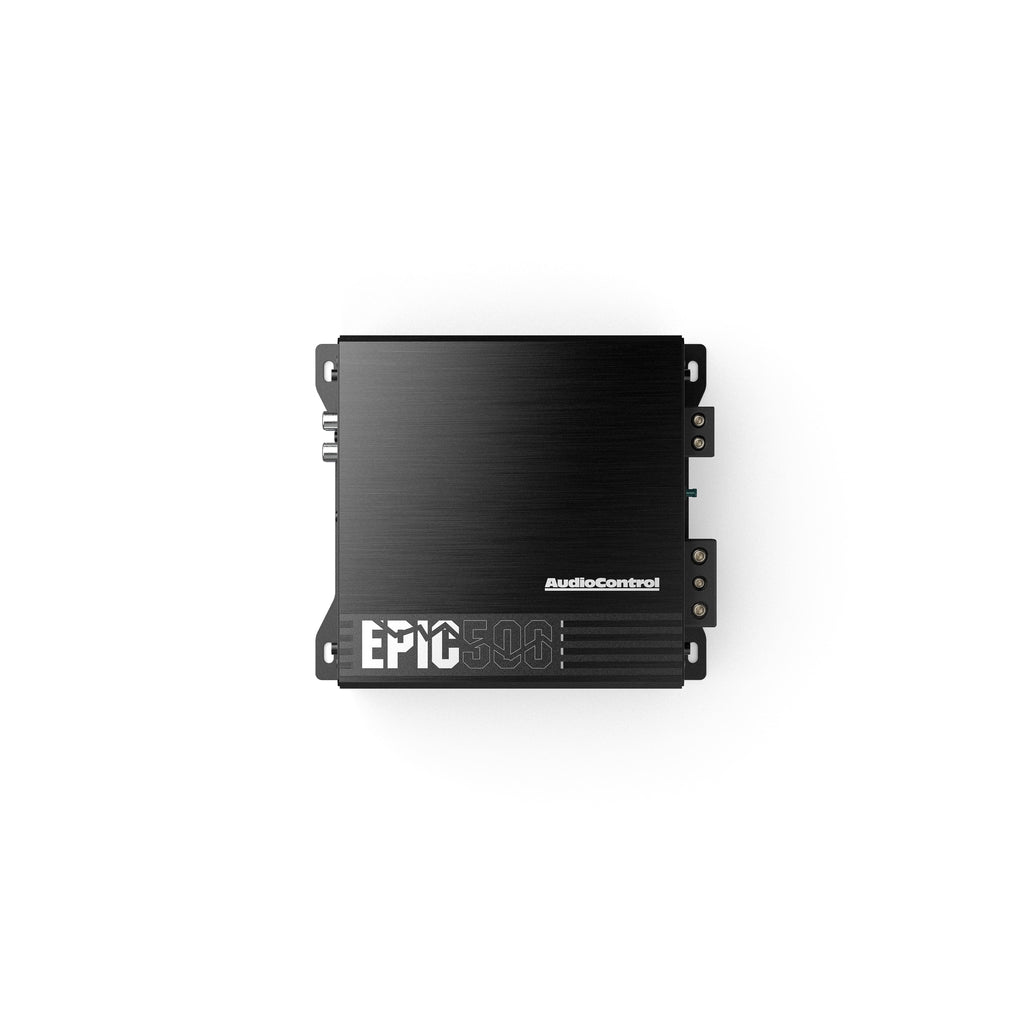

The AudioControl EPIC Series Amplifier delivers heart-pounding bass in a sleek, thermally efficient design. This 500 watt beast is engineered to pair with The Epicenter Bass Restoration Processor (sold separately), taking your bass game to a whole new level with crazy depth and clarity. Plus, this monoblock amp doesn’t just serve up wicked sound quality—it comes with an adjustable bass knob, giving you precise control right at your fingertips. If you're a basshead looking to step up your car audio with fire performance and easy adjustability, this amp’s for you!
What's In The Box
- 500 Watt Monoblock Amplifier
- Wrench
- Screws
- ACR-E Remote Level Control and Cable
- The Epicenter Link (1m Harness)
- User Guide
Specifications
| Amplifier Topology Power Output RMS (14.4V, <1% THD) Frequency Response (+/- 1 dB) S/N Ratio Power / Ground Wire Gauge Recommended Fuse Rating Low Pass Filter Subsonic Filter EPIC Boost Line-level Inputs Speaker Terminal Wire Gauge Chassis Dimensions (LxWxH) | Class D 1 x 250 Watts @ 4 ohms; 1 x 350 Watts @ 2 ohms; 10 Hz - 190 Hz 94 dBa, Ref 400 Watts @ 4 ohms 4 AWG 80 Amps 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz 12 dB/octave Linkwitz-Riley, Off to 50 Hz Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB 500mV - 12V RMS 8 AWG 5.9 in x 6.1 in x 2.01 in |
