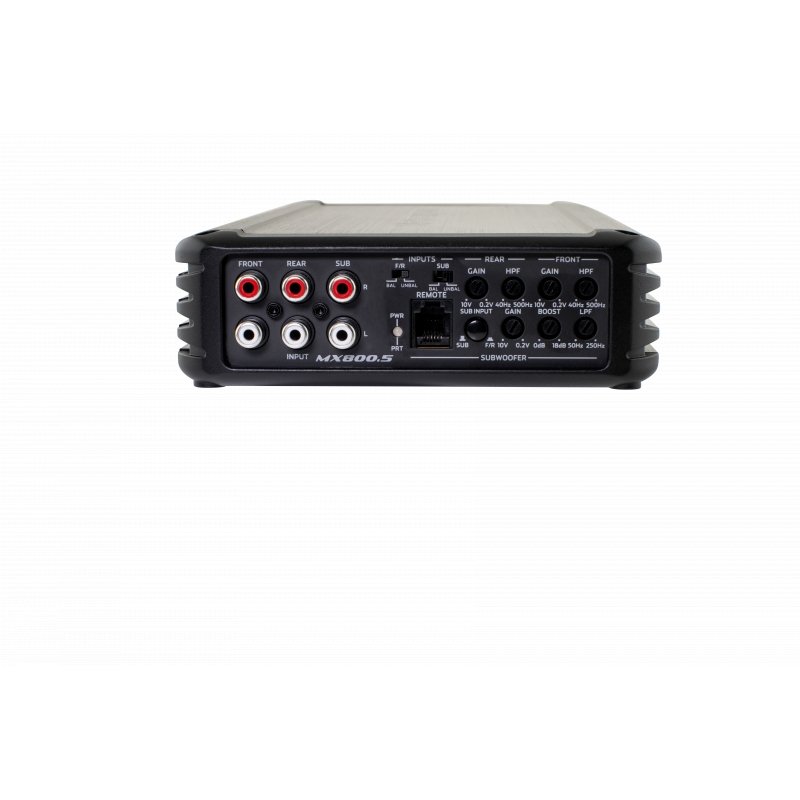

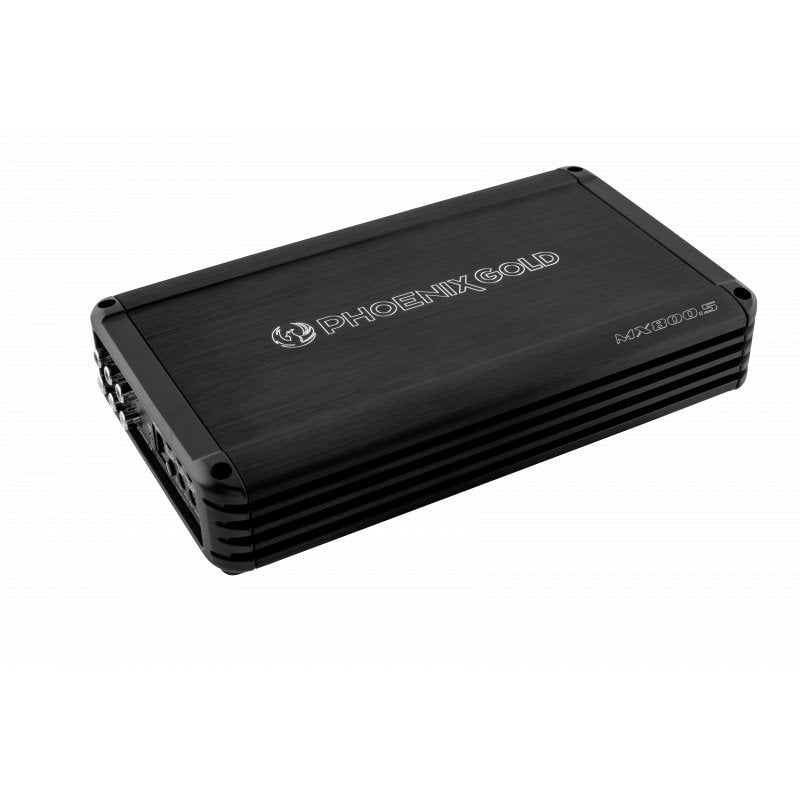

MX 800W 5 Channel Full Range Class D Sub Compact Amplifier
SKU: MX800.5
$539
Description
Phoenix Gold's MX amplifier series is a sub-compact series of amplifiers engineered for vehicles where space is at a premium, like trucks, jeeps and sports cars. Proving that amazing things do come in small packages. Designed to fit, without compromising power and sound quality, MX800.5, full system amplifier delivers 800 watts of efficient, clean power to drive your entire system, delivering hard-hitting, articulate bass, warm, studio quality mids and lows, and a listening experience with full tonal accuracy that any audiophile would love.
Features
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies: Automotive grade, High Current MOSFETs with high amperage capability and heat tolerance.
- Remote Bass Controller Included: Provides remote level control of bass from listening position. With a sleek flush-mount knob for ease of installation.
- Audio Precision® Quality Control Verification
- Balanced Flow Dissipation (BFD): Component layout and chassis design are optimized to evenly distribute heat across the entire chassis, avoiding hotspots and increasing thermal efficiency.
- Balanced/Unbalanced Inputs: Provides input matching flexibility for noise rejection from source signal components.
- Direct Insert Power and Speaker Terminals: Decreased resistance for higher power transfer and efficiency
- High level inputs via RCA (balances / unbalanced) using the Stinger X12LINE
-
Dimensions
(L x W x H)
10.16” x 5.91” x 1.91”
258mm x 150mm x 48.5mm
Specs
RMS Power Ratings listed at less than 1% THD @ 14.4v
| Number of Channels: | 5 |
| 4Ω: CH 1 - 4 | 70W x 4 |
| 2Ω: CH 1 - 4 | 100W x 4 |
| 4Ω: CH 5 | 300W x 1 |
| 2Ω: CH 5 | 400W x 1 |
| 3CH Mode: | N/A |
| Total RMS Power (Sum of rated power): | 800W |
| Bridgeable: | NO |
| Crossover Mode: | HP/LP |
| CH 1 - 4 | 40Hz - 500Hz @ 12dB / Oct Linkwitz Riley |
| CH 5 | 50Hz - 250Hz @ 12dB / Oct Linkwitz Riley |
| Input Channels: | 4CH F/R or 6CH F/R/S |
| Input Mode: | Switchable Unbalanced / Balanced |
| Input Sensitivity: | .2v - 6v Unbalanced RCA Low-Level |
| .5v - 10v Balanced RCA Hi-Level | |
| Processing: | Bass Boost 0dB - +18dB @45hz |
| Signal to Noise (@ CEA Standard): | >80dB |
| Frequency Response: Full Range | CH 1 - 4 10Hz - 40kHz |
| CH 5 15Hz - 250Hz | |
| Topology Class: | D |
| Heatsink Type: | Extruded Aluminum |
| Cooling Type: | Radiation |
| Operating Voltage: | 8V to 16V |
| Switchable Auto-Turn On: | No |
| Power Supply Type: | Unregulated |
| Power Terminals: | 4 Gauge |
| Speaker Terminal: | 10 Gauge |
| On Board Fusing: | 2 x 40A ATC |
| Recommended Inline Fuse: | 70A |
| Dimensions (L x W x H): | 10.16” x 5.91” x 1.91” - 258mm x 150mm x 48.5mm |
